Description

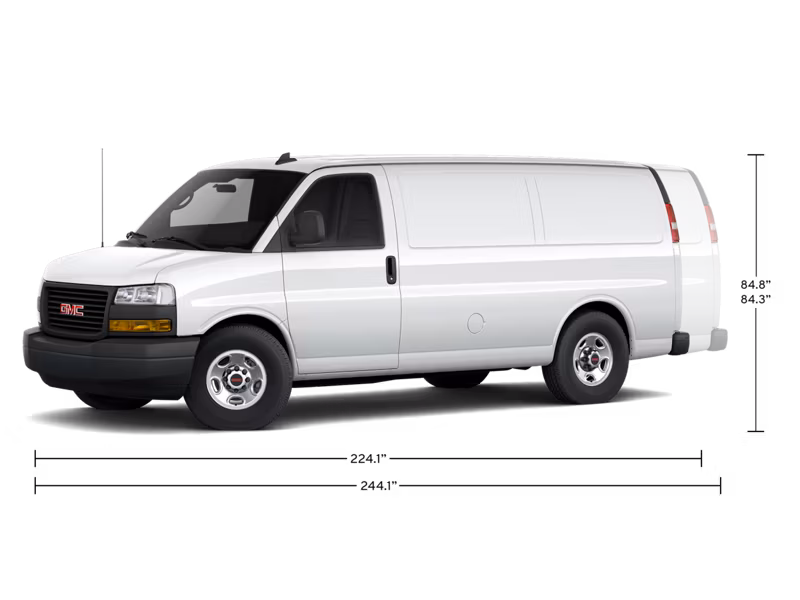

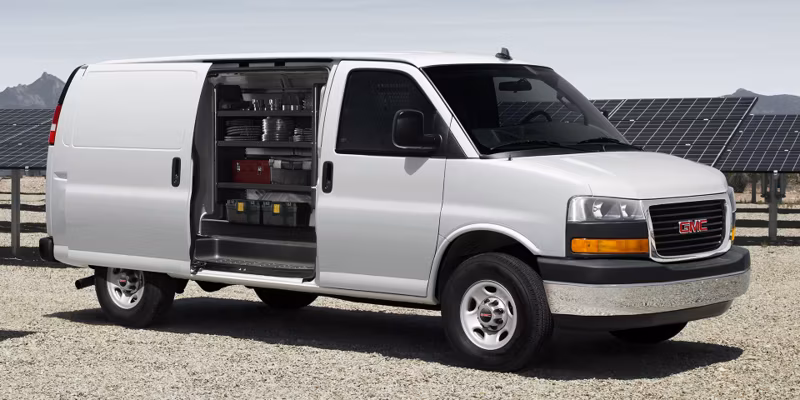

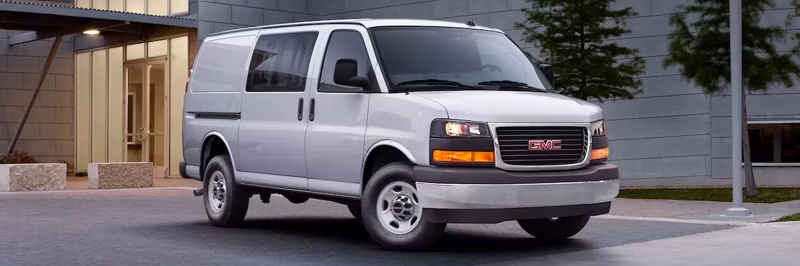

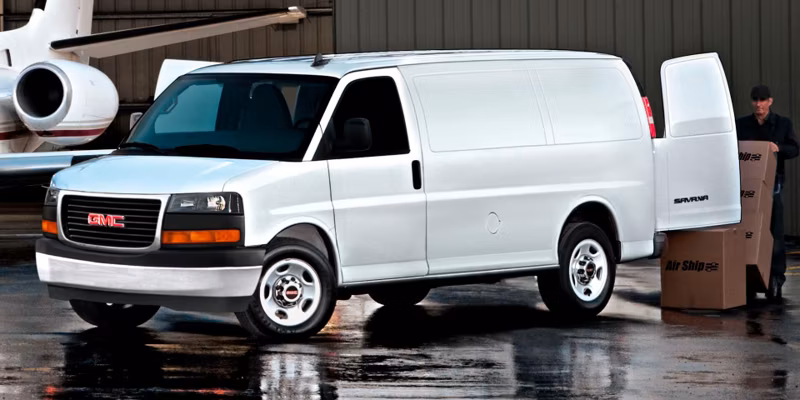

GMC Savana Cargo 2500 Regular Wheelbase Work Van RWD
Specifications
Manufacturer
GMC
Model
Savana Cargo 2500 Regular Wheelbase Work Van RWD
Year
2026
Category
Vans
Subcategory
Savana Cargo
Front Head Room
40.85 in
Front Leg Room
41.35 in
Front Shoulder Room
68.85 in
Front Hip Room
65.47 in
Wheelbase
135.00 in
Length, Overall
224.05 in
Width, Max w/o mirrors
79.25 in
Height, Overall
84.75 in
Overhang, Front
39.70 in
Ground to Top of Load Floor
30.30 in
Ground Clearance, Front
9.72 in
Ground Clearance, Rear
8.62 in
Rear Door Opening Height
49.40 in
Rear Door Opening Width
53.42 in
Step Up Height - Front
27.67 in
Step Up Height - Side
28.25 in
Cargo Area Length @ Floor to Console
154.70 in
Cargo Area Length @ Floor to Seat 1
126.75 in
Cargo Box Width @ Wheelhousings
52.47 in
Cargo Box (Area) Height
55.08 in
Cargo Volume
239.40 ft³
Gross Axle Weight Rating
9,460 lbs
Curb Weight
5,104 lbs
Reserve Axle Capacity
3,921 lbs
Gross Vehicle Weight Rating
8,600 lbs
As Spec'd Curb Weight
5,189 lbs
As Spec'd Payload
3,411 lbs
Base Trim Weight - Front
2,932 lbs
Base Trim Weight - Rear
2,257 lbs
Curb Weight - Front
2,879 lbs
Curb Weight - Rear
2,225 lbs
Gross Axle Wt Rating - Front
4,100 lbs
Gross Axle Wt Rating - Rear
5,360 lbs
Gross Combined Wt Rating
15,000 lbs
Maximum Payload Capacity
3,496 lbs
Reserve Axle Capacity - Front
1,168 lbs
Reserve Axle Capacity - Rear
2,753 lbs
Standard Weight - Front
53 lbs
Standard Weight - Rear
32 lbs
Trim Curb Weight
5,189 lbs
Passenger Capacity
2
Fuel Tank Capacity, Approx
31.0 gal
Fuel Tank Location
Mid-Frame
