Description

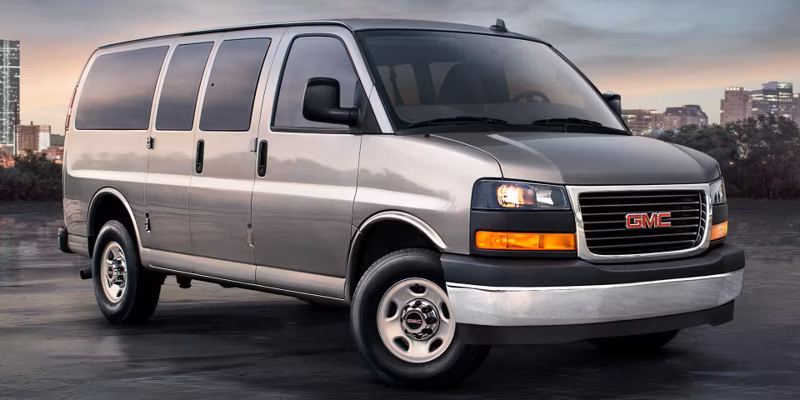

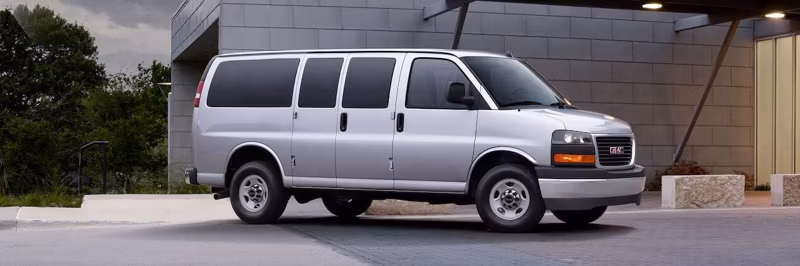

GMC Savana Passenger 3500 Regular Wheelbase LT RWD
Specifications
Manufacturer
GMC
Model
Savana Passenger 3500 Regular Wheelbase LT RWD
Year
2026
Category
Vans
Subcategory
Savana Passenger
Gross Axle Weight Rating
10,384 lbs
Curb Weight
5,861 lbs
Reserve Axle Capacity
4,173 lbs
Gross Vehicle Weight Rating
9,600 lbs
As Spec'd Curb Weight
5,861 lbs
As Spec'd Payload
3,739 lbs
Base Trim Weight - Front
2,945 lbs
Base Trim Weight - Rear
2,916 lbs
Curb Weight - Front
2,945 lbs
Curb Weight - Rear
2,916 lbs
Gross Axle Wt Rating - Front
4,300 lbs
Gross Axle Wt Rating - Rear
6,084 lbs
Gross Combined Wt Rating
15,000 lbs
Maximum Payload Capacity
3,739 lbs
Reserve Axle Capacity - Front
1,355 lbs
Reserve Axle Capacity - Rear
2,818 lbs
Trim Curb Weight
5,861 lbs
Passenger Capacity
12
Front Head Room
40.85 in
Front Leg Room
41.35 in
Front Shoulder Room
68.85 in
Front Hip Room
65.48 in
Second Head Room
38.42 in
Second Leg Room
36.30 in
Second Shoulder Room
68.60 in
Second Hip Room
65.62 in
Third Head Room
38.50 in
Third Leg Room
36.58 in
Third Shoulder Room
65.75 in
Third Hip Room
63.25 in
Fourth Head Room
38.30 in
Fourth Leg Room
36.58 in
Fourth Shoulder Room
69.10 in
Fourth Hip Room
65.65 in
Wheelbase
135.20 in
Length, Overall
223.95 in
Width, Max w/o mirrors
79.25 in
Height, Overall
84.50 in
Overhang, Front
39.70 in
Ground to Top of Load Floor
31.90 in
Ground Clearance, Front
9.70 in
Ground Clearance, Rear
8.60 in
Rear Door Opening Height
47.20 in
Rear Door Opening Width
53.42 in
Side Door Opening Height
46.70 in
Step Up Height - Front
27.60 in
Step Up Height - Side
28.10 in
Cargo Area Length @ Floor to Console
154.70 in
Cargo Area Length @ Floor to Seat 1
126.20 in
Cargo Box Width @ Wheelhousings
50.40 in
Cargo Box (Area) Height
51.80 in
Cargo Volume to Seat 1
218.50 ft³
